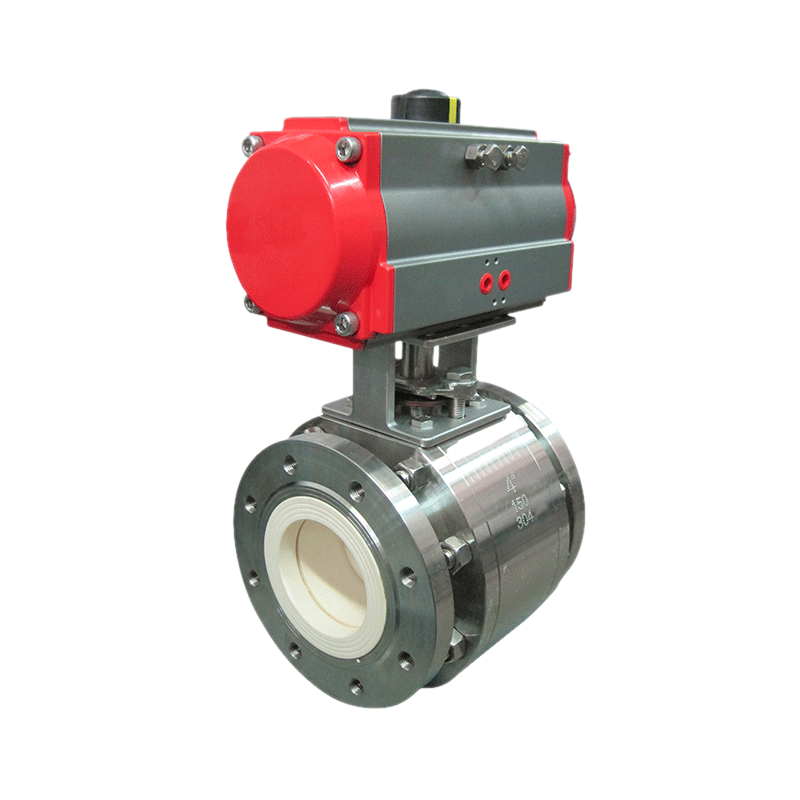

The Ceramic Ball Valve controls the flow of fluid by rotating the ball. The ball is usually made of high-performance ceramic materials such as alumina ceramics, zirconia ceramics, and silicon nitride ceramics, which have extremely high hardness and wear r
Contact UsThe Ceramic Ball Valve works similar to a normal ball valve by rotating the ball to control fluid switching. When the ball is rotated perpendicular to the pipe axis, the fluid is cut off. When the sphere is rotated parallel to the axis of the pipe, fluid can flow through the sphere channel. Due to the excellent performance of the ceramic material, the ceramic ball valve has minimal friction and wear during the switching process, thus ensuring the long life and reliability of the valve.
• Strong corrosion resistance: Ceramic materials have very high chemical stability and can resist the erosion of a variety of corrosive media.
• Good wear resistance: The hardness of ceramic materials is very high, excellent wear resistance, so that ceramic ball valves can maintain a long service life in granular media or high wear conditions.
• Good sealing performance: The advanced grinding process and sealing technology between the ball and the seat can ensure that the valve is closed without leakage.
• High temperature and high pressure resistance: Ceramic material has good high temperature and high pressure resistance, so that ceramic ball valve can work normally under high temperature and high pressure conditions.
• Easy operation: The ceramic ball valve can be quickly opened and closed by rotating 90°, and the operation is simple and rapid.
Design Standard: ANSI B16.34, GB/T12237
Size: DN50~300
Types: Socket Fusion, Butt Welding, Threaded Couplings, Flange etc.
Materials: Body and Ball: WCB, CF8, CF8M, CF3M etc.
Seat: Structural Ceramic
Test: API 598, GB/T13927, JB/T9092
Working Pressure:CLASS150, CLASS300, PN10/16/25/40
