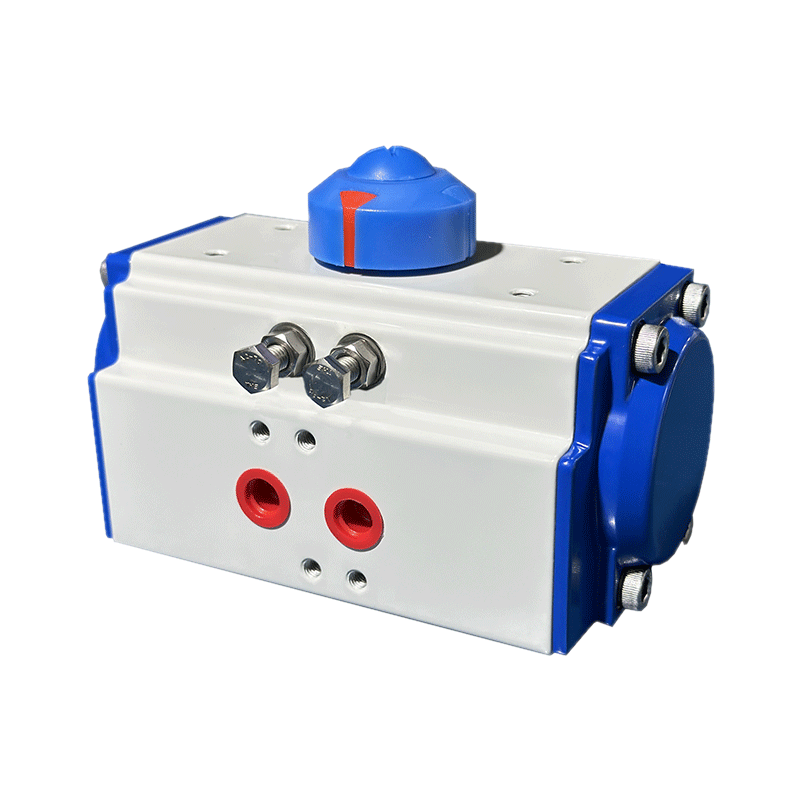

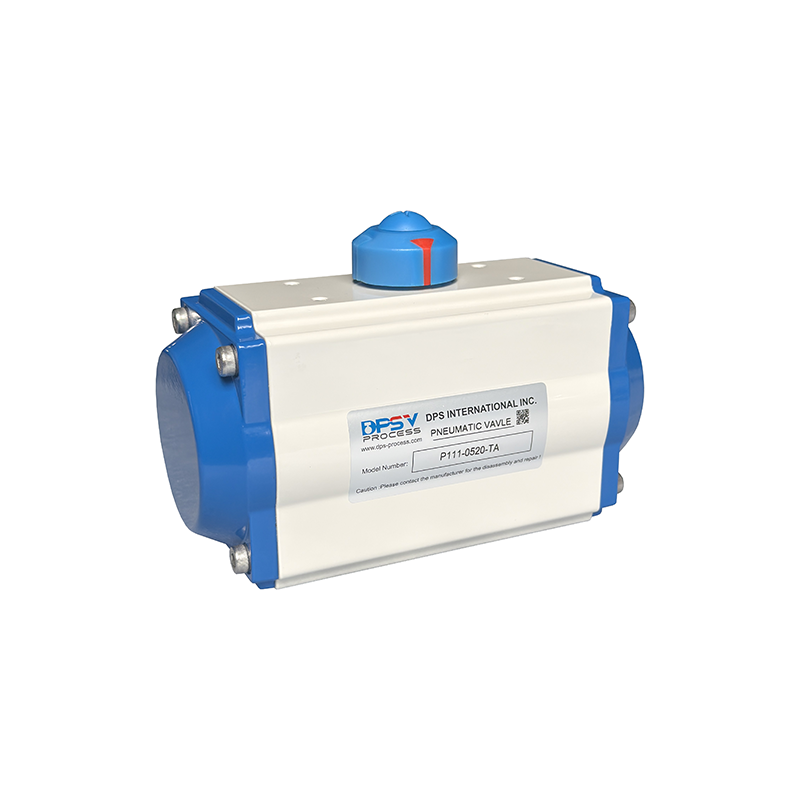

Rotary Pneumatic Actuator

Rotary Pneumatic Actuator refers to a pneumatic actuator used to control the rotation Angle, whose output shaft rotates less than one week. Its working principle is to control the opening and closing of the air source, so that the air source pushes the cylinder to do the pull rod movement, and the pneumatic actuator body rotates accordingly, so as to achieve the purpose of controlling the Angle and angular speed. Specifically, when compressed air enters the cylinder through the pneumatic valve, the air source acts on the piston in the cylinder, causing it to push the tie rod. The pull rod is connected with the output shaft of the gear high speed reduction box, so that the output shaft drives the transmission device to rotate. The gearbox provides an extremely high reduction ratio, allowing for angular adjustment of the output shaft.

• Precise control: Angular stroke pneumatic actuators can achieve accurate Angle control to meet the high precision requirements for rotation angles in various application scenarios.

• Good stability: Using high-quality materials and advanced manufacturing processes, it has good stability and reliability, and can run stably in harsh working environments for a long time.

• Wide adjustment range: The working range covers a variety of rotation Angle requirements, which can meet the needs of different application scenarios.

• Simple structure: simple structure design, making installation, commissioning and maintenance more convenient.

• Easy integration: It can be seamlessly integrated with various control systems to achieve automated control and regulation.

• Energy saving and environmental protection: The use of advanced energy-saving technology can effectively reduce energy consumption, while reducing the impact on the environment.

• Aluminum alloy: Aluminum alloy is a common material for angular travel pneumatic actuator housing and cylinder. It is light, strong and has good corrosion resistance. The hard anodized aluminum alloy has hard surface texture, strong wear resistance and can adapt to a variety of working environments.

• Stainless steel: In some special environments, such as strong corrosive media or high temperature environment, stainless steel shell and cylinder are more suitable. Stainless steel has excellent corrosion and high temperature resistance to ensure the stability and reliability of actuators in these harsh environments.
