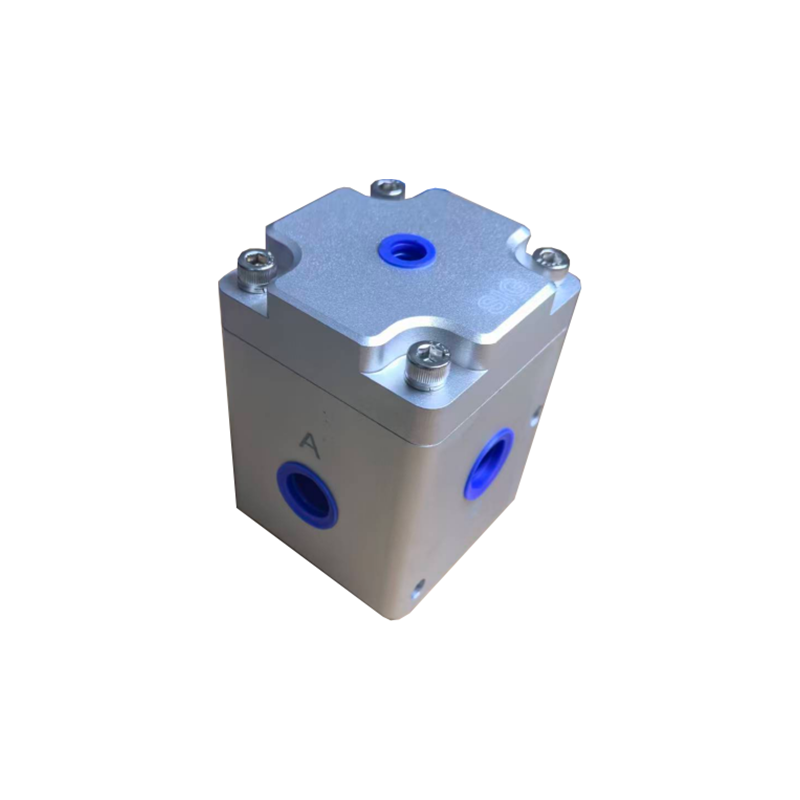

The valve body is made of stainless steel 316 material,
Rapid exhaust and high efficiency,
The valve body is hard and pressure resistant, with a long service life,
Suitable for harsh environmental conditions.
| Model | QES-04 | QES-06 | QES-08 | QES-12 | QES-14 | QES-16 | |||||||
| Port size | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | |||||||
| Working medium | Air | ||||||||||||
| Body material | 316 Stainless steel material | ||||||||||||
| Effective cross-sectional area | 175mm² | 450mm² | 450mm² | 1190mm² | 1190mm² | 1960mm² | |||||||
| Working pressure | 0.05~1.0Mpa | ||||||||||||
| Maximum withstand voltage | 10kg/cm² | ||||||||||||
| Ambient temperature | -10℃~+120℃/-40℃~+70℃ | ||||||||||||
