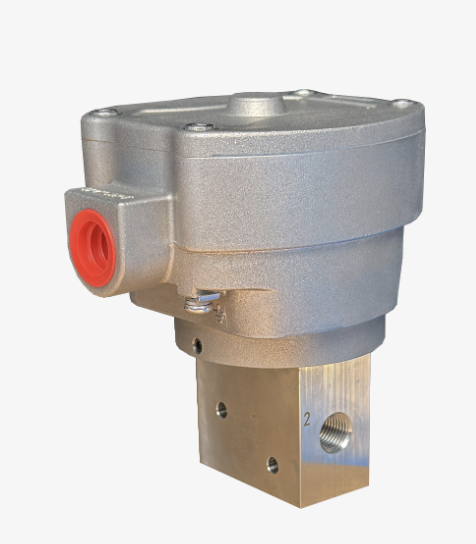

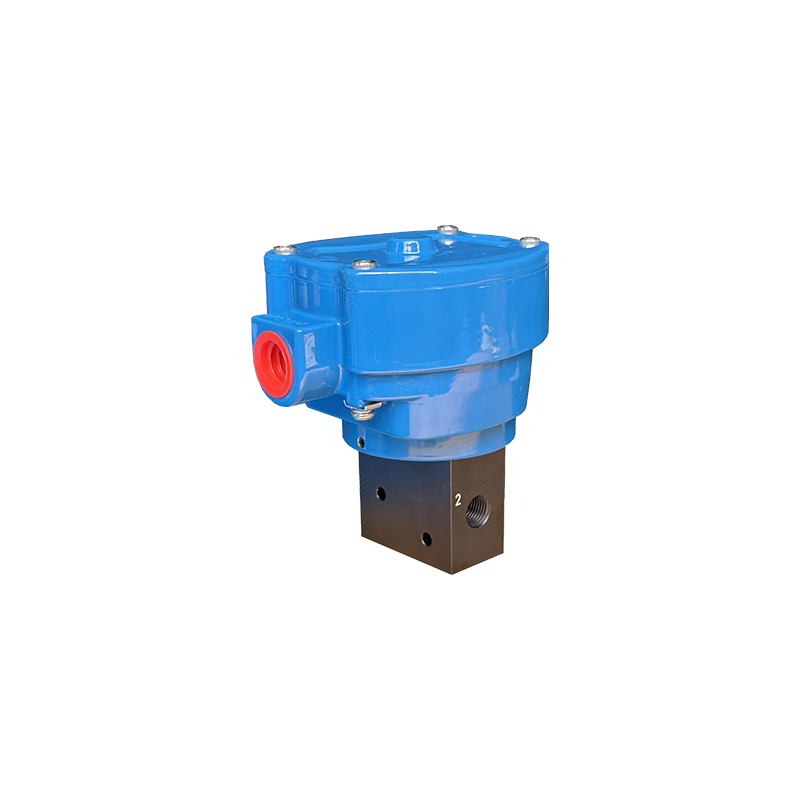

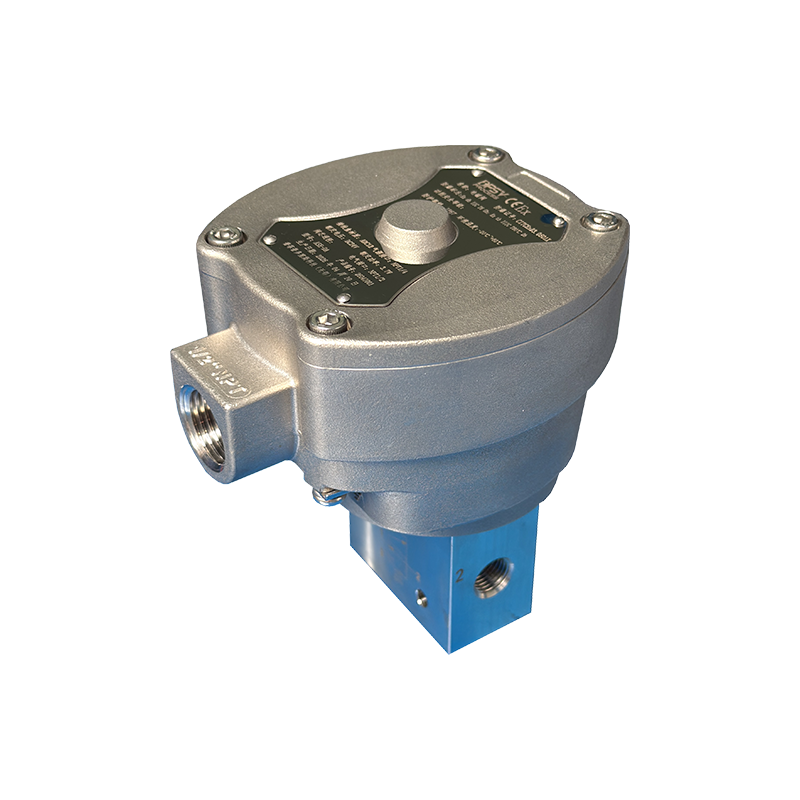

ASE Solenoid Valve

ASE solenoid valve is based on the principle of electromagnetic force. When the electromagnet is energized, it generates a magnetic force, which is enough to overcome the spring's elasticity or other resistance, making the spool move, thereby changing the opening or closing state of the valve. When the electromagnet is powered off, the magnetic force disappears, the spool is restored to its original position under the action of a spring or other reset mechanism, and the valve is also closed or opened.

• High performance: ASE solenoid valves are made of high-quality materials and manufacturing processes, with excellent durability and stability, and can maintain high performance under a variety of harsh conditions.

• Multiple connection methods: flange connection, thread connection and other connection methods are provided to adapt to different pipeline and installation environments.

• Multiple control methods: Support normally open, normally closed, self-holding and other control methods to meet the needs of different users.

• Strong fluid compatibility: suitable for a variety of fluid media, such as air, water, oil, etc., with a wide range of fluid compatibility.

• Easy maintenance: The design is simple and clear, easy to maintain and check, and users can clean, lubricate and replace parts of the solenoid valve through simple operation.

• Voltage DC24V、AC220V ;

• Mounting: Directly Operated Type；

• Working pressure : 2～8bar；

• Working medium: <40 μ m dry air;

• Working temperature:-20℃～+80℃，-40℃～+80℃；

• Explosion-proof rating：ExdbIIC T6 Gb；Ex tb IIICT80℃ Db；

• Material: aluminum alloy, stainless steel, etc.；

• Manual Button is Optional.
