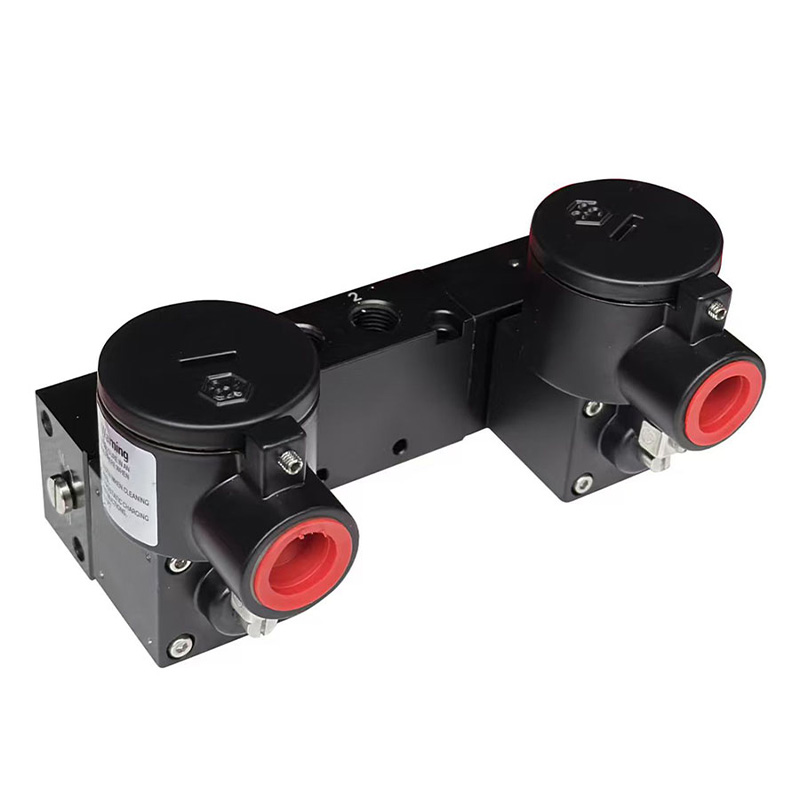

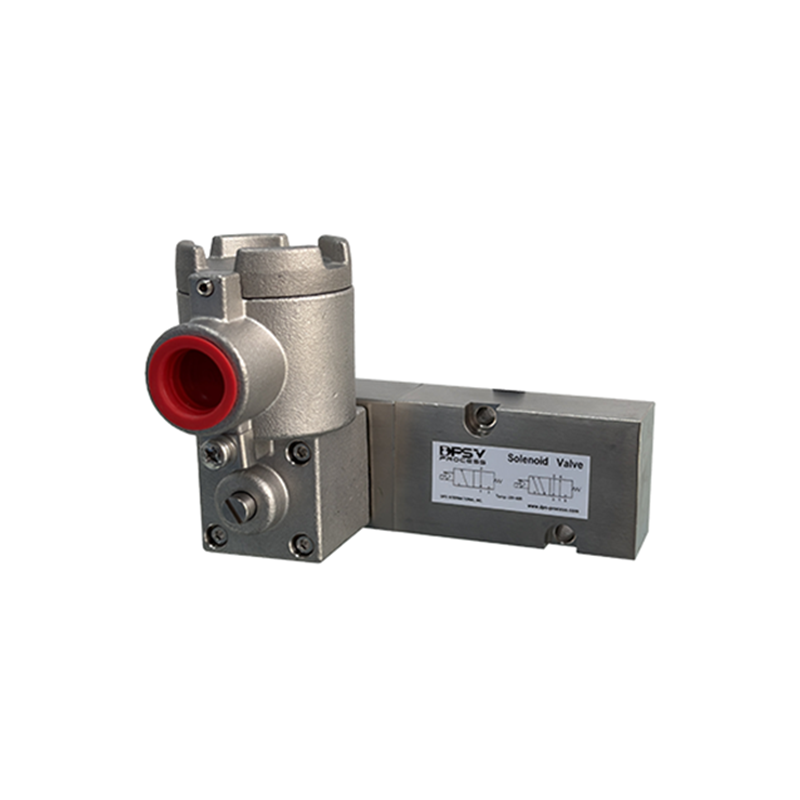

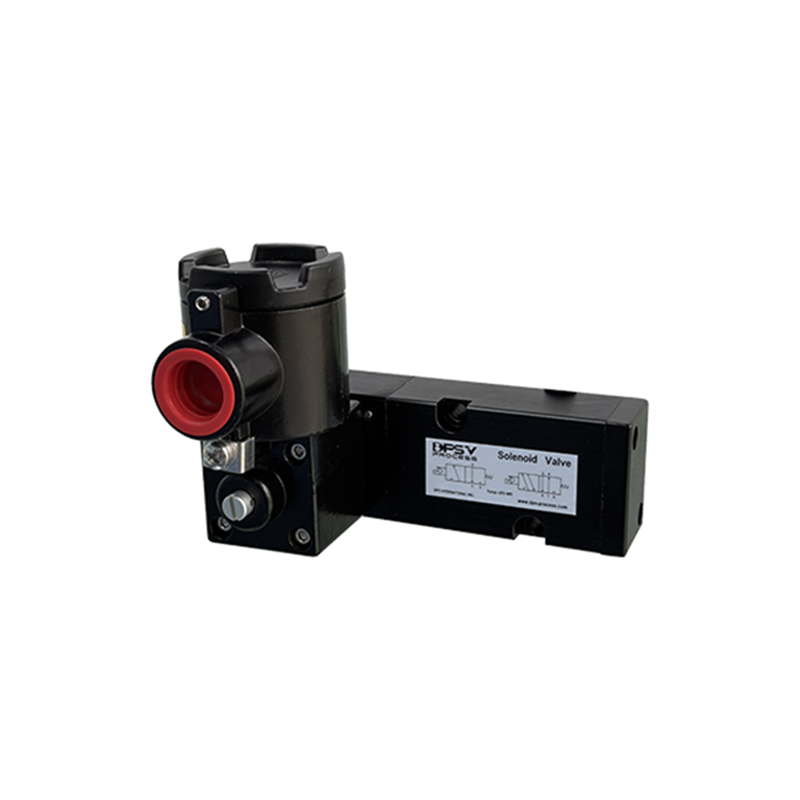

Explosion-proof Solenoid Valve

ASE NM1 series explosion-proof solenoid valves work in a similar way to ordinary solenoid valves, but with added explosion-proof functions. When the electromagnet is energized, it generates a magnetic force that attracts the spool to move, thereby changing the opening or closing state of the valve. When the electromagnet is powered off, the magnetic force disappears, the spool is restored to its original position under the action of the spring, and the valve is also closed. Through this working principle, the solenoid valve can achieve fast and accurate control of the fluid.

• Explosion-proof performance: ASE NM1 series explosion-proof solenoid valves comply with relevant explosion-proof standards and regulations and can be used safely in explosive gas or steam environments. Its explosion-proof design includes special materials and construction to ensure that the switch will not cause a fire or explosion in an explosive environment.

• Multiple mounting methods: This series of solenoid valves offers a variety of mounting methods, such as flange connection, threaded connection, etc., to adapt to different pipeline and installation environments.

• High reliability: ASE NM1 series explosion-proof solenoid valves are made of high-quality materials and manufacturing processes for excellent durability and stability. The contact system is stable and reliable, which can ensure the long-term stable operation of the circuit.

• Strong fluid compatibility: This series of solenoid valves is suitable for a variety of fluid media, such as air, water, oil, etc. Users can choose the appropriate fluid medium and the corresponding solenoid valve model according to the actual needs.

• Easy maintenance: ASE NM1 series explosion-proof solenoid valves are designed to be easy to maintain and inspect. The user can clean, lubricate and replace the parts of the solenoid valve through simple operation to ensure its long-term stable operation.

• Voltage DC12V、DC24V、AC110V、AC220V ;

• Mounting: Pipe connection and NAMUR mounting;

• Function: 5/2,3/2 solenoid and air operated valves;

• Drive mode: single coil and double coil  optional;

• Working pressure : 2～8bar；

• Working medium: <40 μ m dry air;

• Working temperature: -40℃～+80℃；

• Explosion-proof rating：ExdbIIC T6 Gb；Ex tb IIICT80℃ Db；

• Material: aluminum alloy, stainless steel 304, stainless steel 316, etc.;

• With a manual button, convenient for manual operation.
