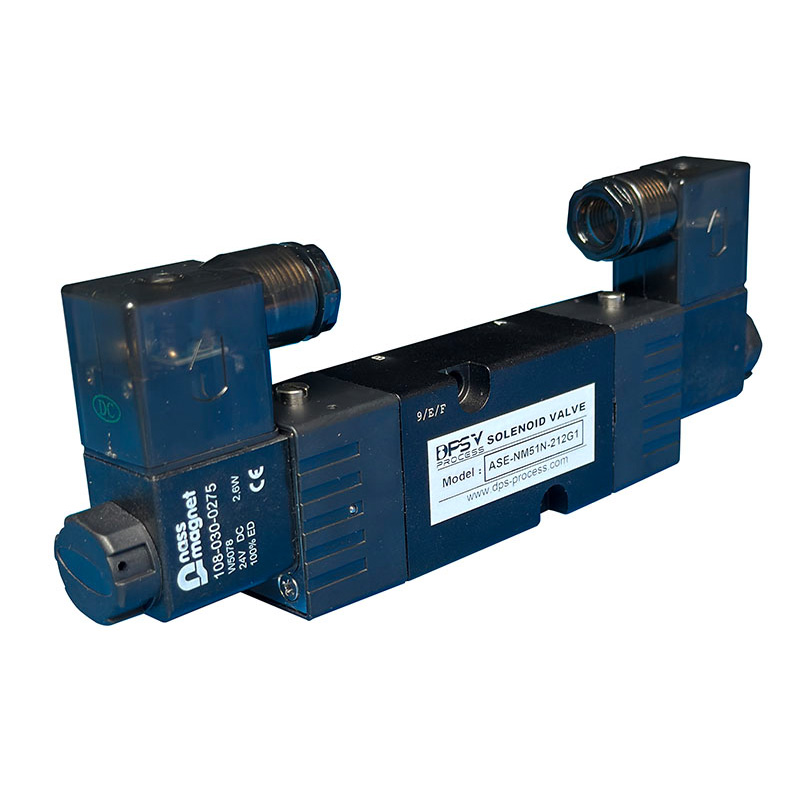

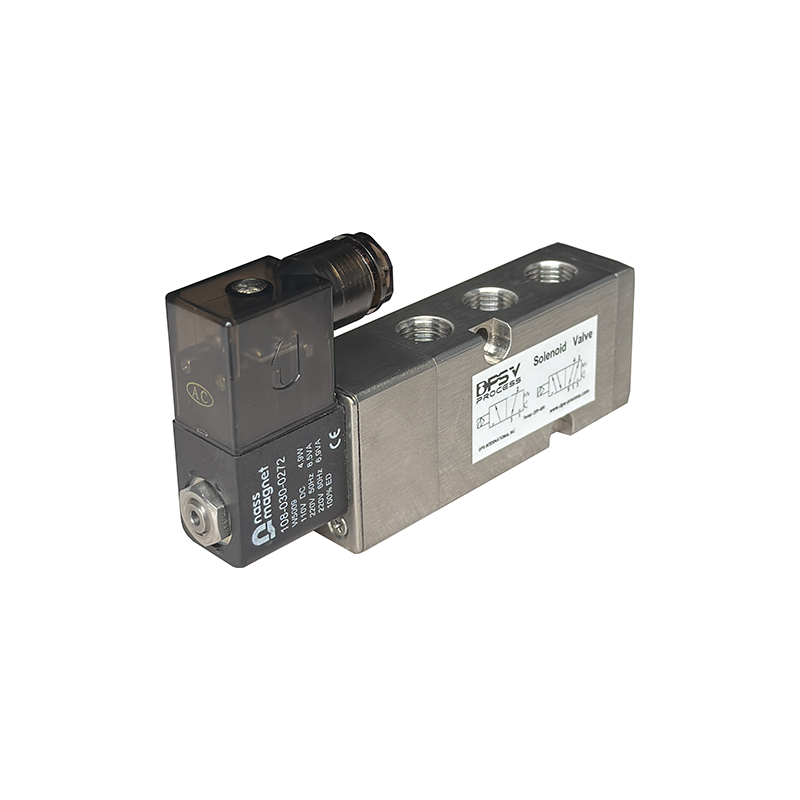

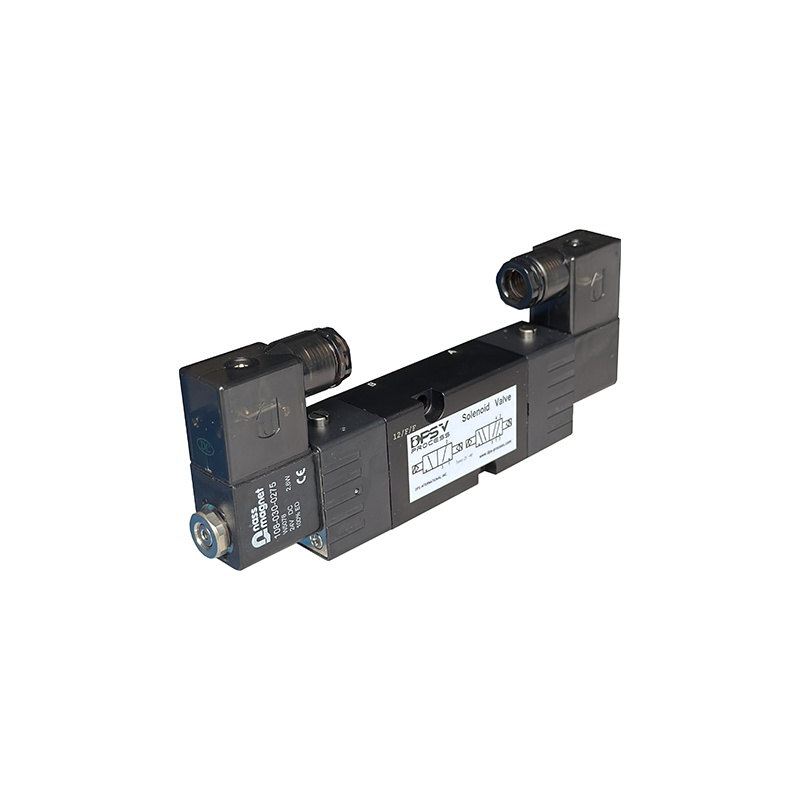

ASE NM-N Series

Not Explosion-proof Solenoid Valve

ASE NM-N series solenoid valve is made of advanced technology and high quality materials, with compact structure, light weight, easy to install and so on. This series of solenoid valves is suitable for a variety of fluid control systems, which can achieve

Contact Us

Description

ASE NM-N series solenoid valves work on the basis of the principle of electromagnets. When the electromagnet is energized, it will produce a certain magnetic force, which is enough to overcome the spring's elasticity, so that the valve is opened or closed. When the electromagnet is powered off, the magnetic force disappears, and the spring's elasticity returns the valve to its original position. Through this working principle, the solenoid valve can achieve rapid response and accurate control of the fluid.

Product Features

• General design: ASE NM-N series solenoid valves are general design and do not have explosion-proof function. Therefore, it is suitable for industrial environments without explosive gases or vapors.

• Multiple mounting methods: This series of solenoid valves offers a variety of mounting methods, such as flange connection, threaded connection, etc., to adapt to different pipeline and installation environments.

• High reliability: ASE NM-N series solenoid valves are made of high-quality materials and manufacturing processes for excellent durability and stability. At the same time, the contact system is stable and reliable, which can ensure the long-term stable operation of the circuit.

• Strong fluid compatibility: This series of solenoid valves is suitable for a variety of fluid media, such as air, water, oil, etc. Users can choose the appropriate fluid medium and the corresponding solenoid valve model according to the actual needs.

• Easy maintenance: ASE NM-N series solenoid valves are designed to be easy to maintain and inspect. The user can clean, lubricate and replace the parts of the solenoid valve through simple operation to ensure its long-term stable operation.


Technical Parameter

VoltageFrequency(HZ)Power (W)
12VDC-4.6
24VDC-3
48VDC-2.7
110VAC50/605.7
220VAC50/608.5


Main materials

• Voltage DC24V、DC48V、AC110V、AC220V ;

• Mounting: Pipe connection and NAMUR mounting;

• Function: 5/2,3/2 solenoid and air operated valves;

• Drive mode: single coil and double coil  optional;

• Working pressure : 2~8bar

• Working medium: <40 μ m dry air;

• Working temperature: -25℃~+80℃;

• Material: aluminum alloy, stainless steel 304, stainless steel 316, etc.;

• With a manual button, convenient for manual operation
